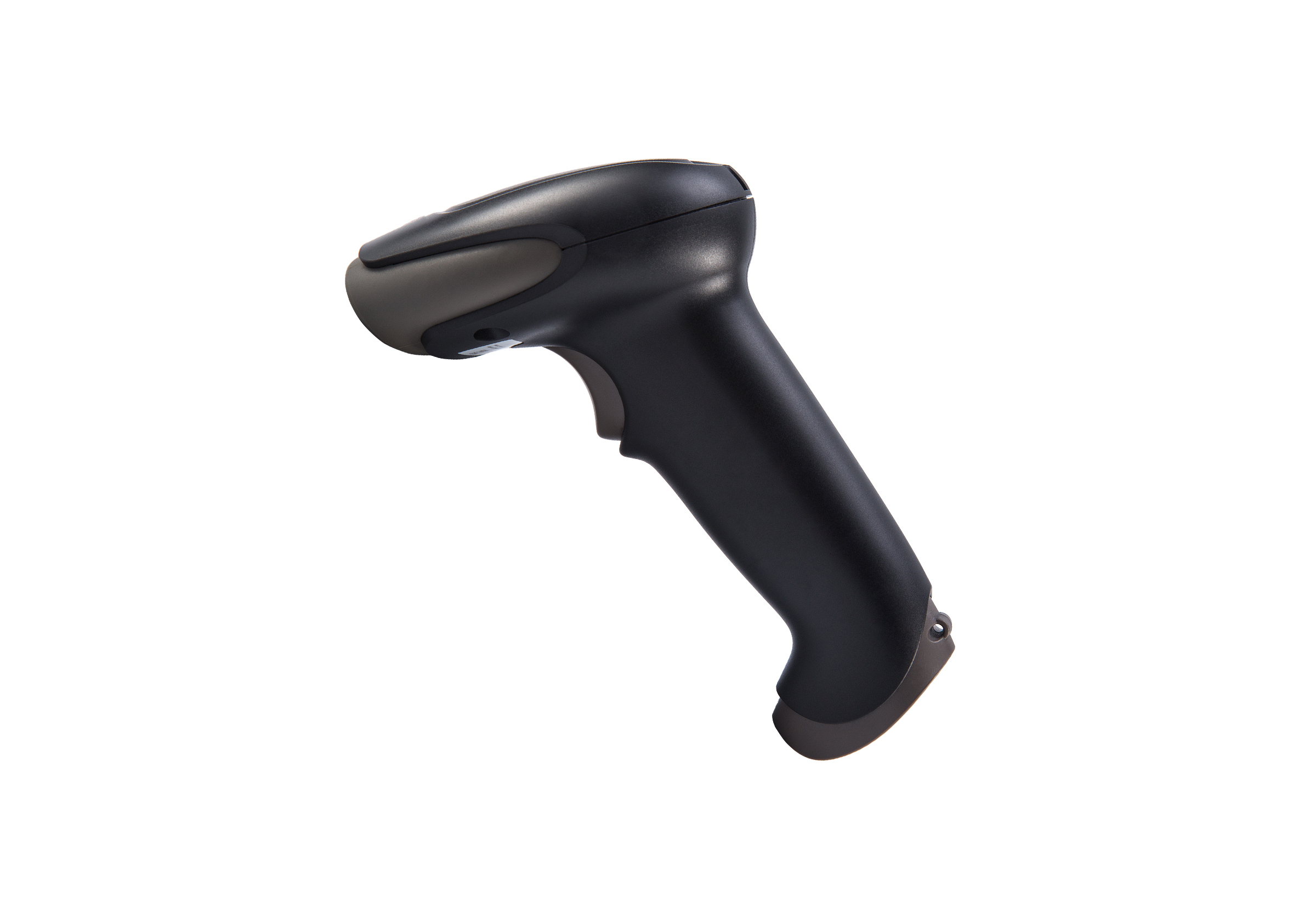

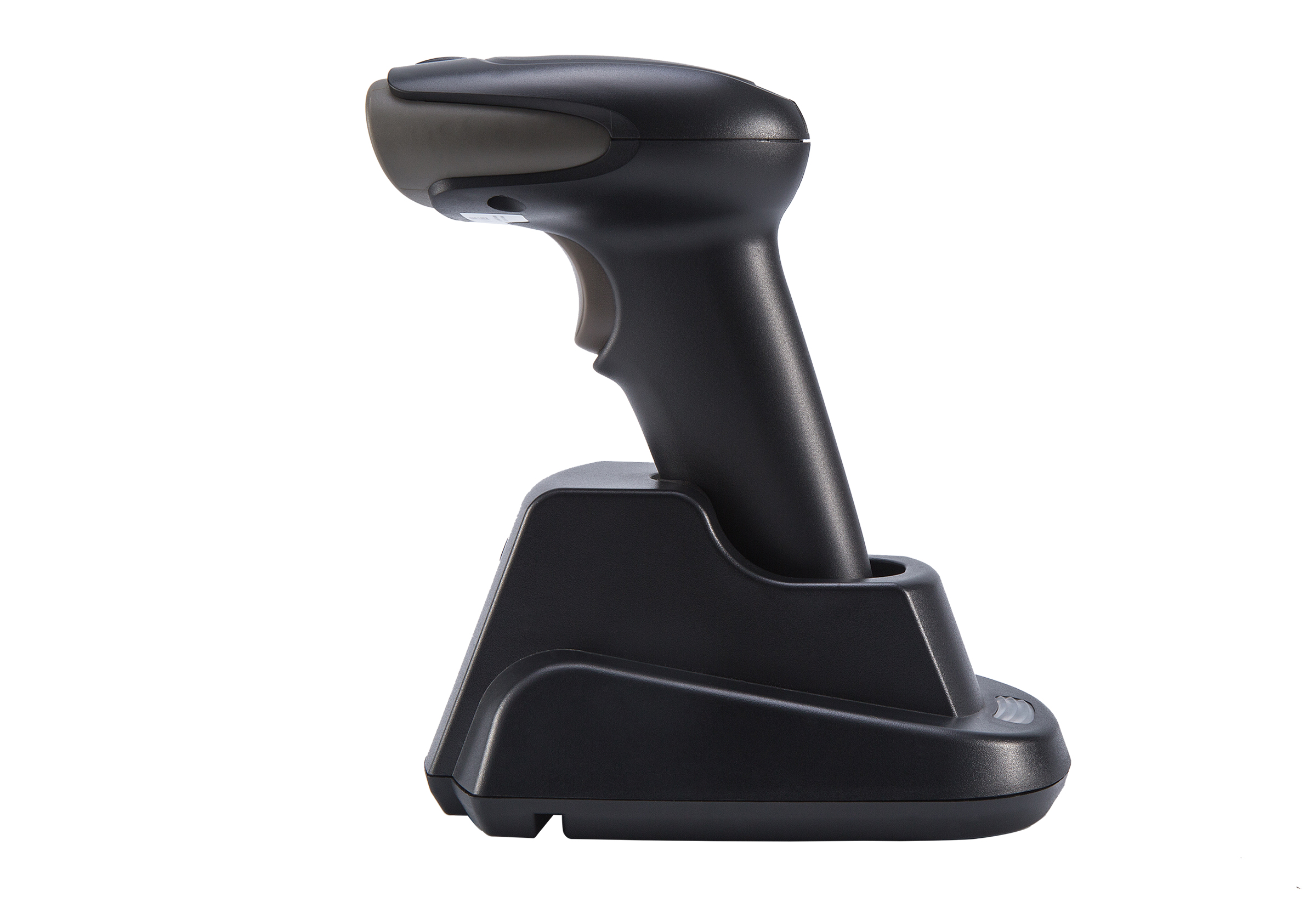

KARATINTL 1534 1D CCD wireless barcode scanner
| Technical parameters | |
| Wireless way | RF433 |
| Communication | 430 to 440MHz |
| Transmission range | ≤100M（In empty area 10M ） |
| Communication mode | Normal mode/inventory models/no loss models |
| Memory | 100，000@13Byte barcode |
| Data rate | 10kbps |
| Electrical Characteristics | |
| Interface | RS-232/USB HID KEYBOARD/USB VCP/RS-485 |
| Battery capacity | 2000mAh (Lithium battery) |
| Working time | 6h（continuous reading situation）12h（Manual reading situation） More than 15 days（Stand-by time） |
| Charging time | 6 hours |
| Voltage requirement | DC 5V±10% |
| Current consumption | Max:138mA |
| Optical Characteristics | |
| Photo sensor | CCD linear sensor |
| SENSOR RESOLUTION | 2500 pixels |
| light source | 632nm red led |
| Performance Characteristics | |
| Scan Rate: | 350±50 (scans/second) |
| Decode angle | Pitch angle：±30° Skew angle：：±75° Tilt angle：±45° |
| Min resolution | 0.115mm／4.5mil（PCS 0.9） |
| Min.PCS value | 〉20%UPC/EAN 13（13mil） |
| curvature | R≥15 mm(EAN8)，R≥20 mm(EAN13)(resolution=0.26mm，PCS=0.9) |
| Language | multiple languages |
| Identification | EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST |
| Physical Characteristics | |
| Dimensions | 70mm*95mm*168mm(L*W*H) |
| Weight | Scanner：172g Receiver：188g |
| Shock drop test | 1.5m drop onto concrete surface |
| Environmental Characteristics | |
| Temp | -20°- 65°C ( -4°F - 149°F )(operation) ， -30°- 70°C (-22°F -158°F)storage) |
| Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
| Ambient Light: |
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
| Regulatory | |
| Electrical Safety | UL 60950，EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
