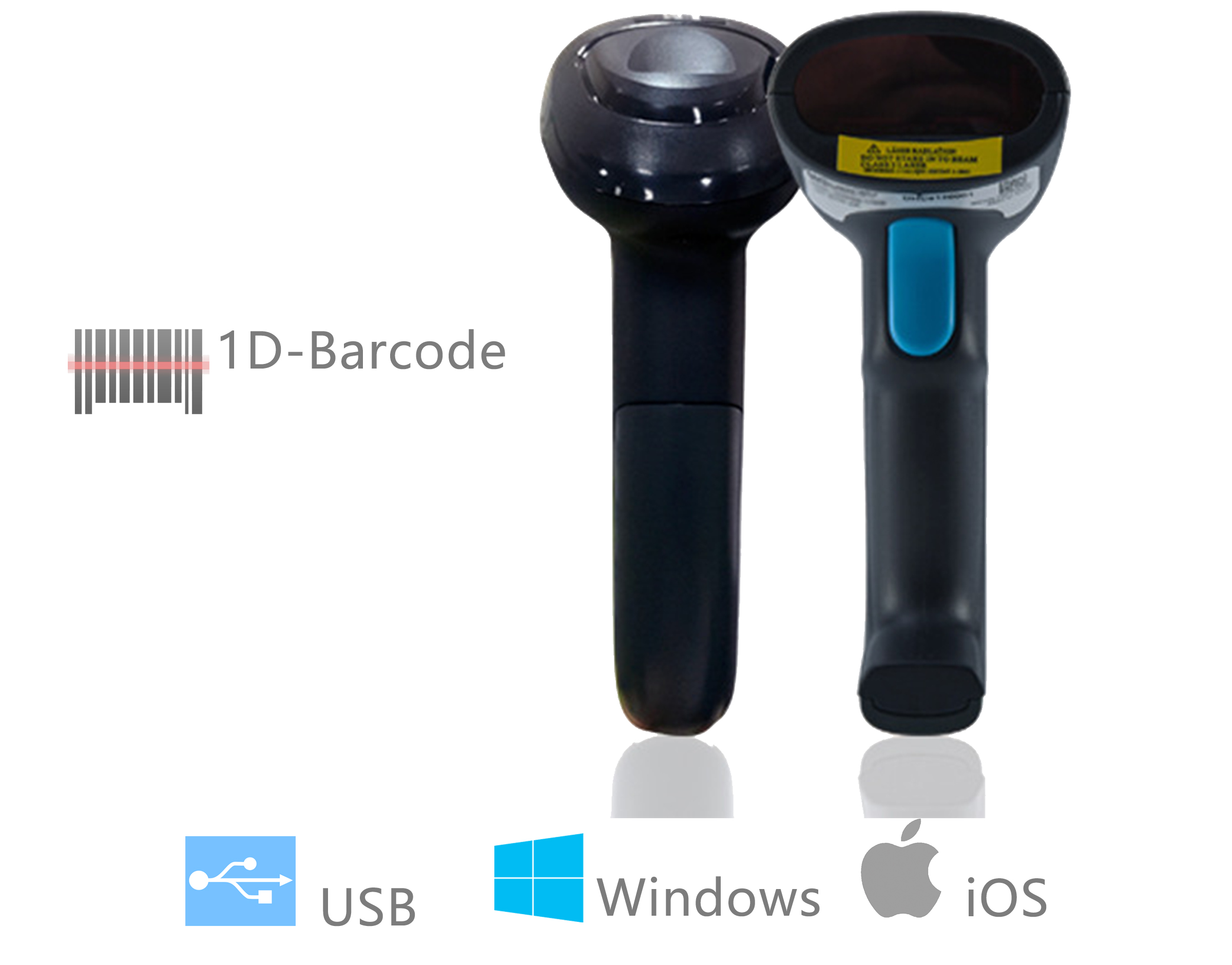

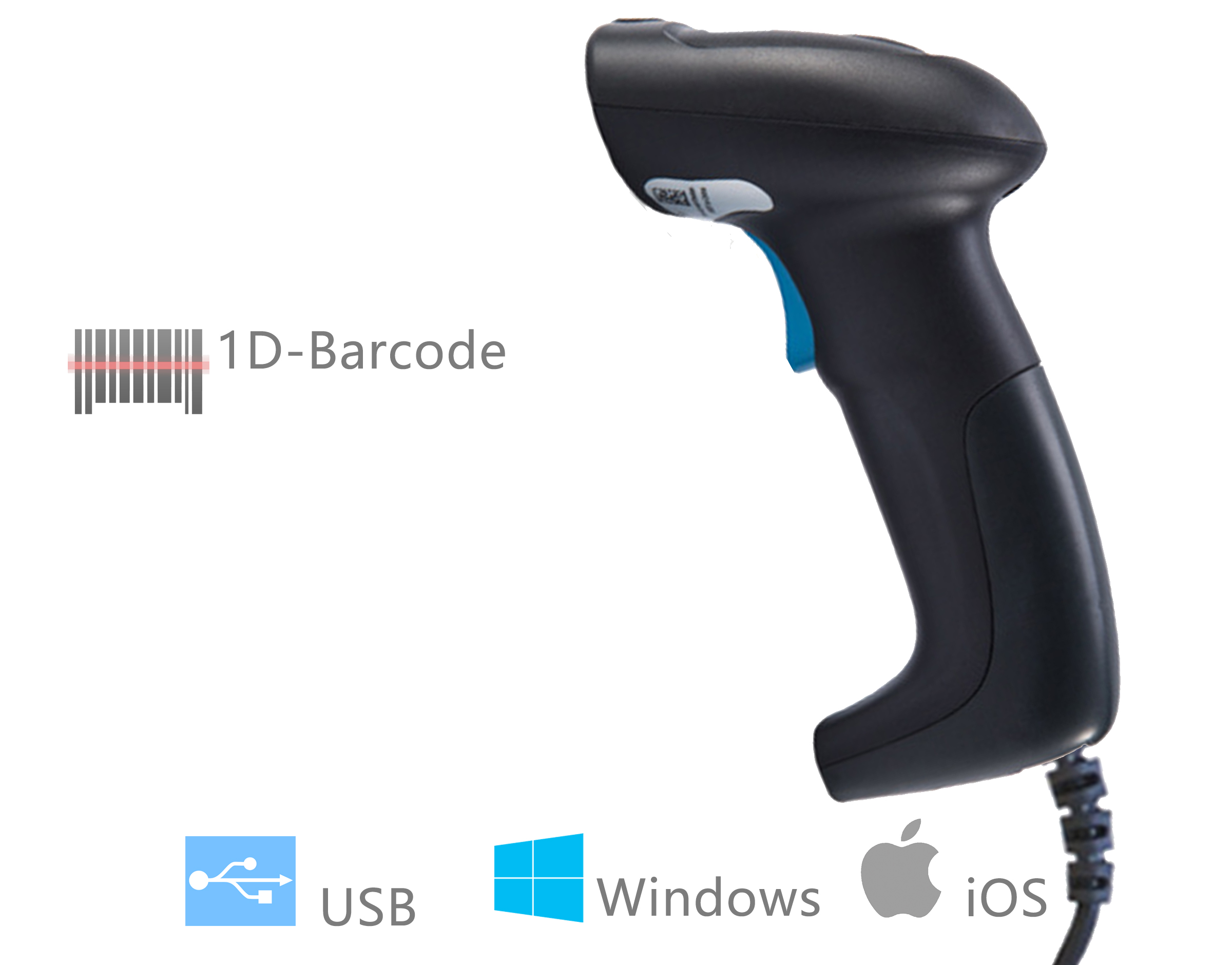

KARATINTL 1531 1D CCD Handhled Barcode Scanner
| Technical parameter | |
| Electrical Characteristics | |
| Interface | RS-232/USB HID KEYBOARD/USB VCP |
| Voltage requiremen | 5VDC±10% |
| Current consumption | 120mA Max |
| Optical Characteristics | |
| Photo sensor | CCD linear sensor |
| light source | 650nm red led |
| Performance Characteristics | |
| Scan method | bi-directional |
| Sensor Resolution | 2500pix |
| Scan Rate: | 350±50 (scans/second) |
| Operating mode | Single read / Multiple read / Continuous read |
| Decode angle | Pitch angle：±30° Skew angle：：±65° Tilt angle：±60° |
| Min resolution | SR：0.127mm/5mil（PCS 0.9） |
| Min.PCS value | 〉25%UPC/EAN 13（13mil） |
| curvature | R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9） |
| bit error rate | 1／500W |
| Identification | EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93， INTERLEAVED 2OF5 ， STANDARD 2OF5 ， MATRIX 2OF5 ， CODE 128 ， EAN/UCC 128，CODE 11，CHINESE POST |
| Physical Characteristics | |
| Dimensions | 66 mm x 82 mm x162mm(L*W*H) |
| Weight | 127.2g |
| Configurations | Decoding |
| Temp | -20 ° -65 ° C / -4 ° to 149 ° F((operation) ) -30 ° - 70 ° C /-22 ° to 158 ° F(storage) |
| Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
| Ambient Light: | 4000 lxfluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
| Shock drop test | 1.3m drop onto concrete surface |
| Regulatory | |
| Electrical Safety | UL 60950，EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
