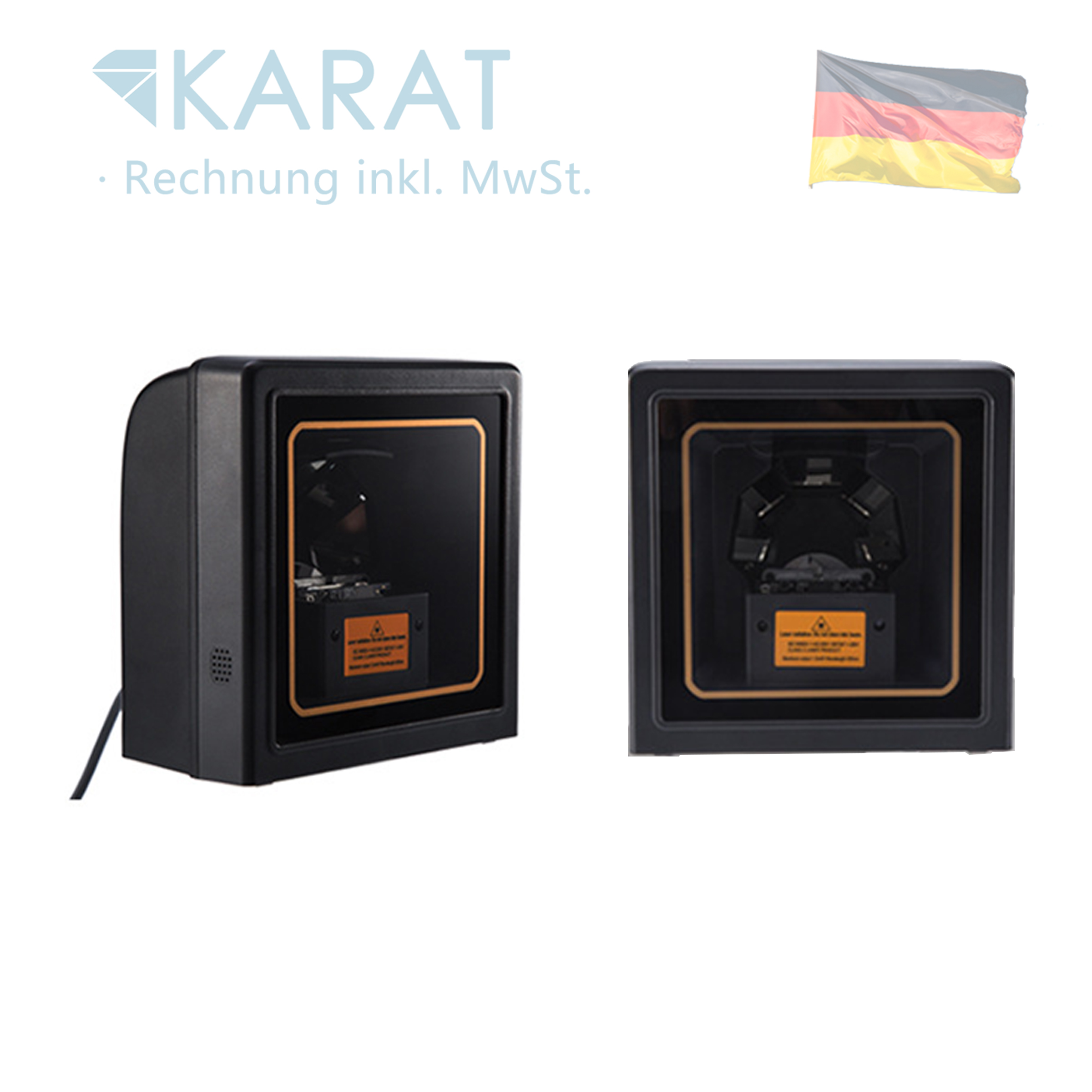

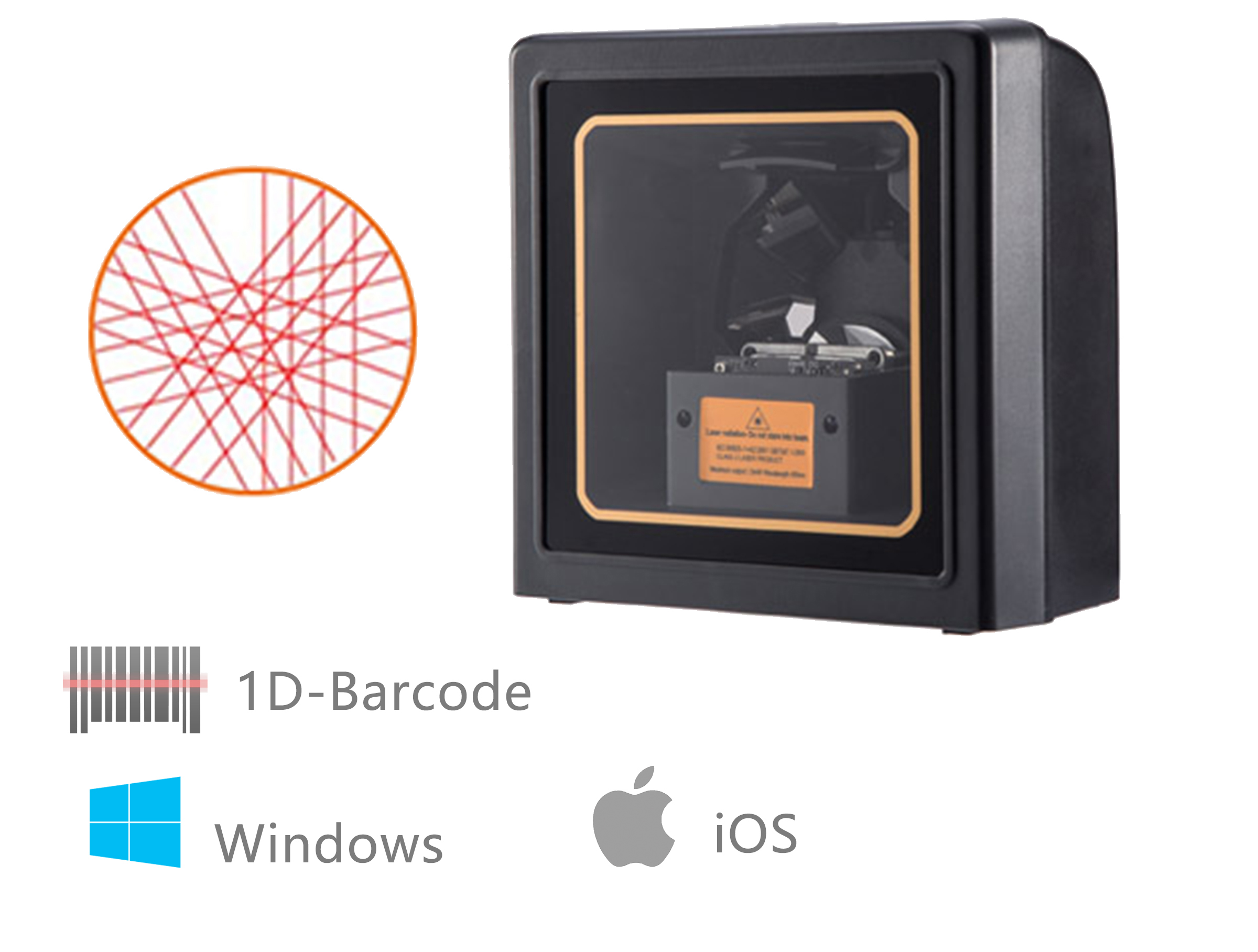

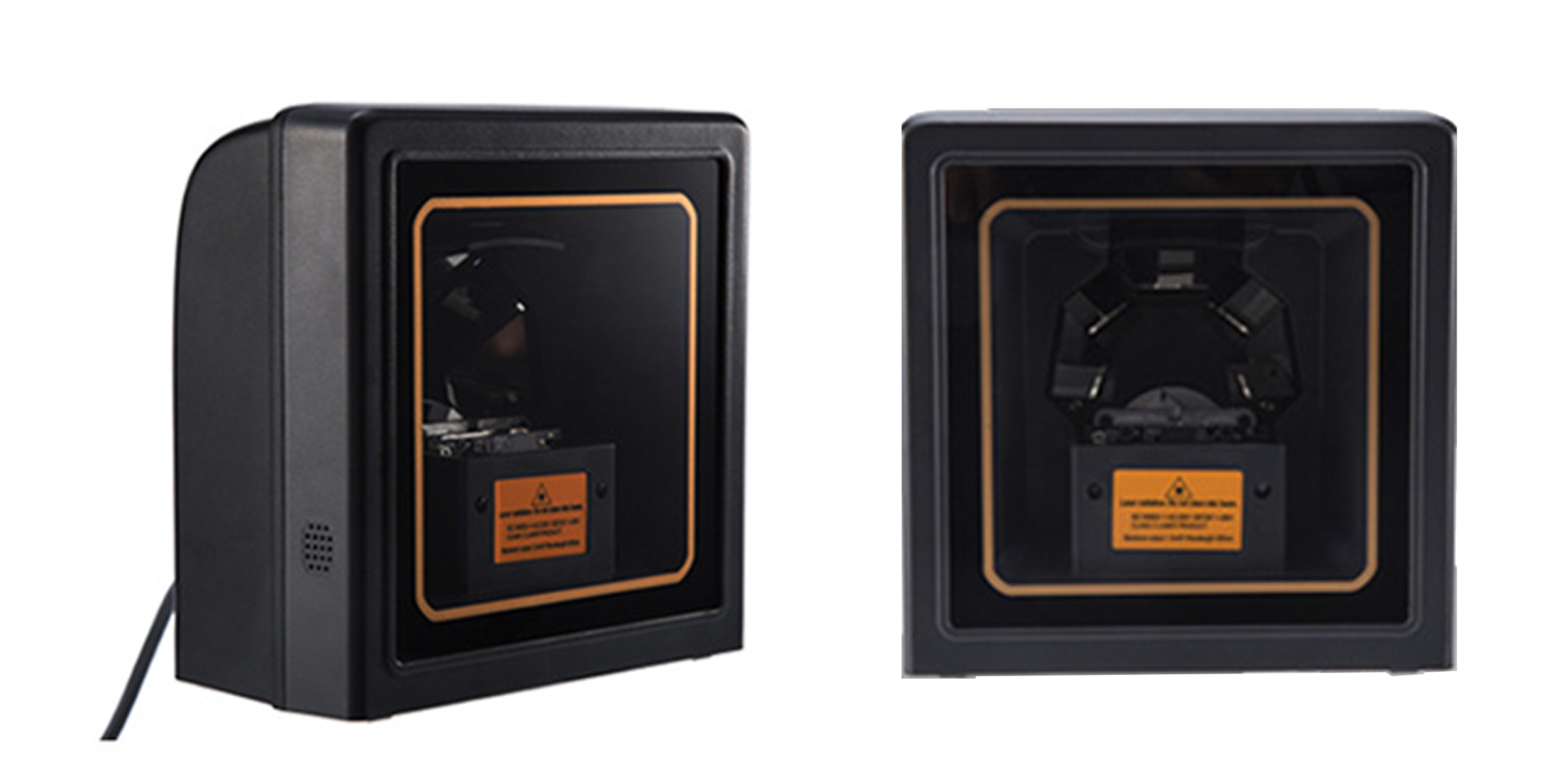

KARATINTL 1530 Multi Line Laser Barcode Scanner
| Technical parameter | |
| Electrical Characteristics | |
| Interface | RS-232/USB HID KEYBOARD |
| Voltage requirement | 5VDC±10% |
| Current consumption | 270mA Max |
| Optical Characteristics | |
| light source | 650nm visible laser diode |
| Performance Characteristics |
|
| Decode angle | 5 directions of scan field(20 line) |
| Scan line |
20 lines |
| Scan Rate: | 1400（scans／second） |
| Min resolution | 0.127mm/5mil（PCS 0.9） |
| Min.PCS value | 〉30%UPC/EAN 13（13mil） |
| Curvature | R≥15 mm(EAN8)，R≥20 mm(EAN13)(resolution=0.26mm，PCS=0.9) |
| Identification | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded |
| Physical Characteristics | |
| Dimensions | 155mm*150mm*70mm(L*W*H) |
| Weight | 640g |
| Environmental Characteristics | |
| Temp | - 10°- 50°C ( 14°F - 122°F )(operation) ， -20°- 60°C (-4°F -140°F)storage) |
| Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
| Ambient Light: | fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
| Shock drop test | 1.2m drop onto concrete surface |
| MBTF | 30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours) |
| Regulatory |
|
| Laser Safety | JIS-C-6802 Class 2 |
| Electrical Safety | UL 60950，EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
