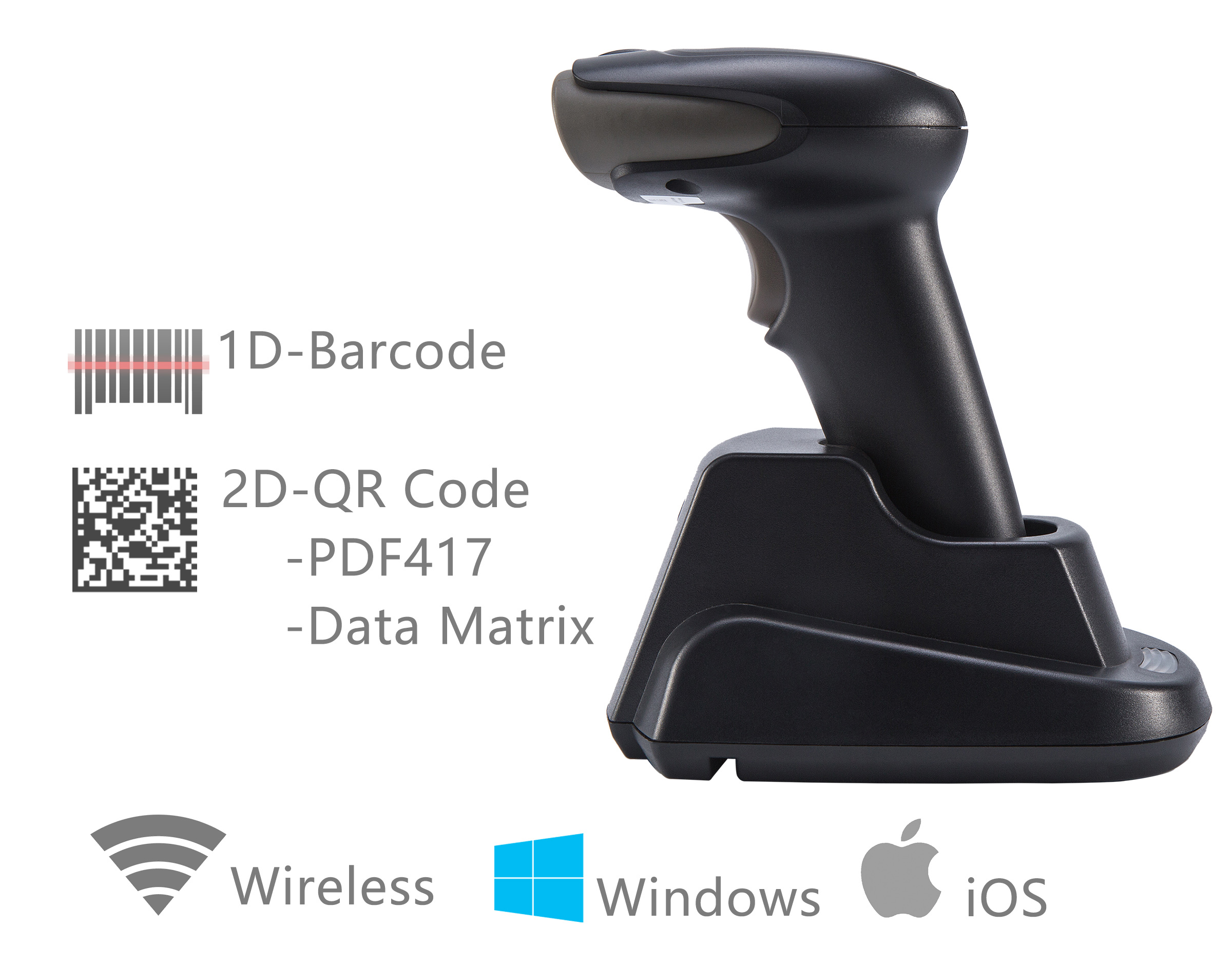

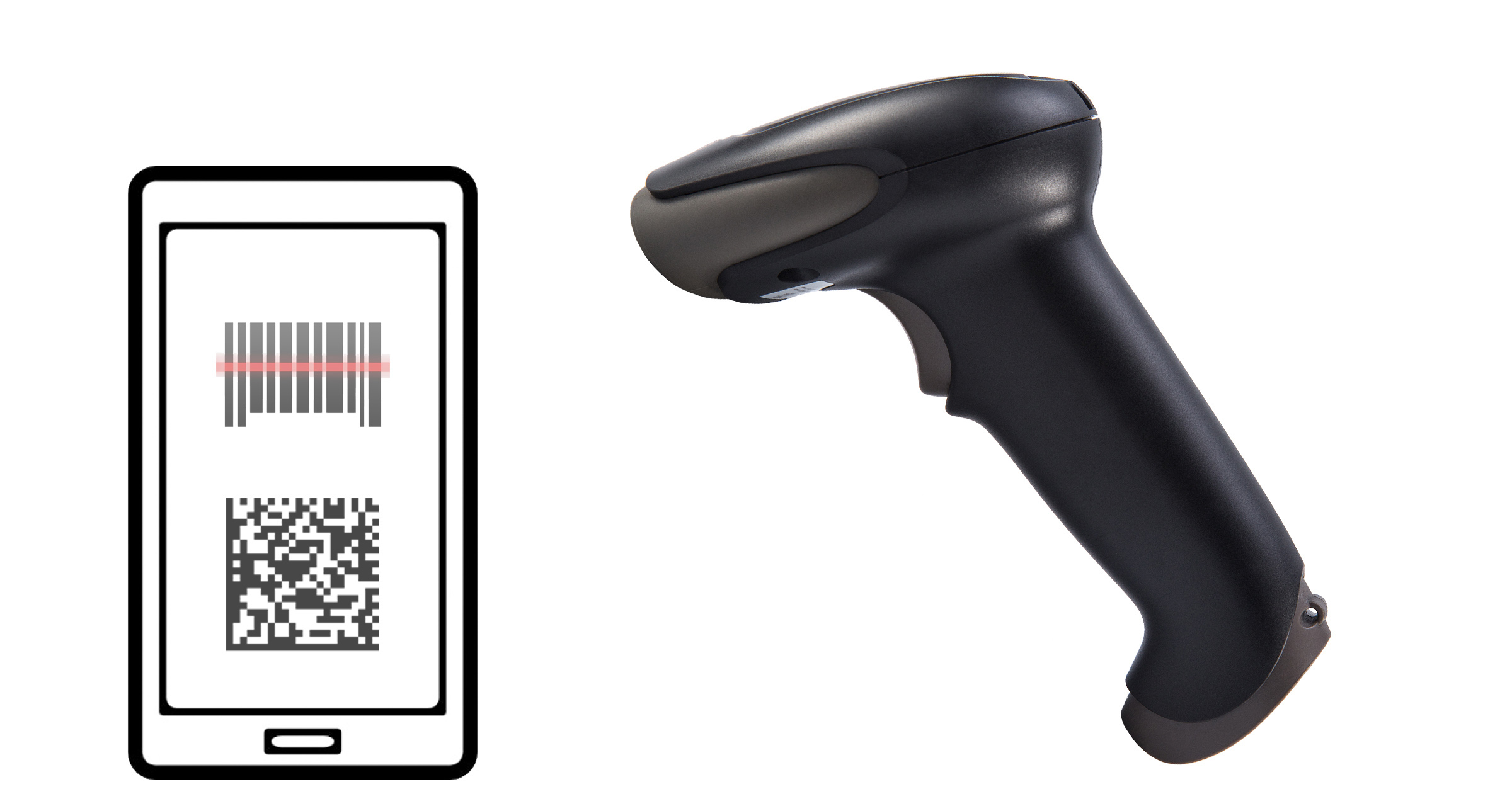

KARATINTL 1528 2D CMOS Wireless Barcode Scanner
| Technical parameters | |
| Wireless way | RF433 |
| Communication frequency | 430 to 440MHz |
| Transmission range | ≤100M（In empty area 10M ） |
| Memory | 100，000@13Byte barcode |
| Data rate | 10kbps |
| Communication mode | Read-time mode/Inventory mode／Cache mode |
| Electrical Characteristics | |
| Interface | RS232/USB HID KEYBOARD/USB VCP(With the base) |
| Battery capacity | 1500mAh (Lithium battery) |
| Working time | 6 hours(continuous reading situation)12 hours (manual reading situation) More than 15 day（Stand-by time） |
| Charging time | 6h |
| Voltage requirement | DC 5V±10% |
| Current consumption | 280mA Max |
| Optical Characteristics | |
| Photo sensor | CMOS array sensor |
| SENSOR RESOLUTION | 752X480 pixels |
| light source | white LED*1 |
| Aim light source | Red Bar LED |
| Performance Characteristics | |
| Decode angle | Pitch angle：±65° Skew angle：±60° Tilt angle：180° |
| Motion capability | Up to 25 in. / 63.5 cm per second |
| Min resolution | 1D:4mil(0.101mm) 2D:10mil(0.25mm) |
| Language | multiple languages |
| Min.PCS value | 〉25%UPC/EAN 13（13mil） |
| curvature | R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9） |
| Field of View | 39°(H),25°(V) |
| Identification | 1D： UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat 2D：PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
| Physical Characteristics | |
| Dimensions | Scanner：70mm*95mm*168mm(L*W*H) Base：145mm*112mm*74mm(L*W*H) |
| Weight | scanner：185g base：186g |
| Shock drop test | 1.5m drop onto concrete surface |
| Environmental Characteristics | |
| Temp | 0°to 40°C / 32° to 104°F((operation) ) -40°-to 70°C /-40° to 158° F(storage) |
| Humidity | 5 - 95% (operation) ) 5 - 95% (storage) |
| Ambient Light: | fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
| Regulatory | |
| Electrical Safety | UL 60950，EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
