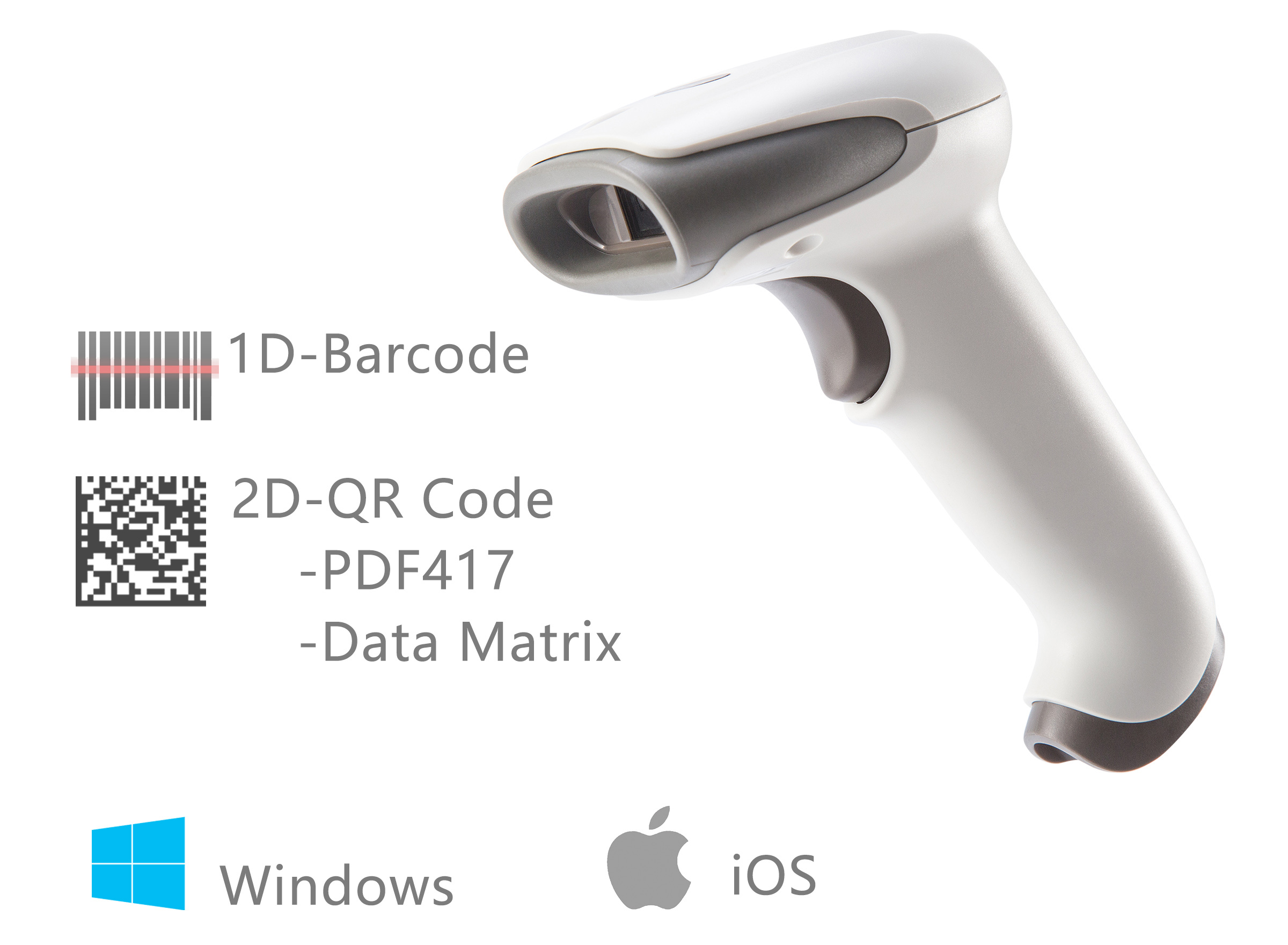

KARATINTL 1527 Two-dimensional image barcode scanner
| Technical parameters | |
| Electrical Characteristics | |
| Interface | RS-232/USB HID KEYBOARD/USB VCP |
| Voltage requirement | 5VDC±10% |
| Current consumption | Max:260mA |
| Optical Characteristics | |
| Photo sensor | CMOS array sensor |
| Sensor resolution | 752X480 pixels |
Light source |
White LED*1 |
| Aim light source | Red Bar LED |
| Performance Characteristics | |
| Decode angle | Pitch angle:±60° Skew angle:±65° Tilt angle:±180° |
| Min resolution | 1D:5mil(0.101mm) 2D:10mil(0.25mm) |
| Min.PCS value | 〉25%UPC/EAN 13（13mil） |
| Language | multiple languages |
| Field of View |
39°(H),25°(V) |
| Identification | 1D： UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat 2D：PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
| Physical Characteristics | |
| Dimension | 70mm*95mm*168mm(L*W*H) |
| Weight | 133.5g |
| Environmental Characteristics | |
| Temp | 0° to 40°C / 32° to 104°F(operation) -40° to 70°C /-40° to 158°F(storage) |
| Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
| Shock drop test | 1.5m drop onto concrete surface |
| Ambient light | Fluorescent light 4,000 lx max, direct sun light 80,000 lx max, white light 4,000 lx max |
| Regulatory | |
| Electrical safety | UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
