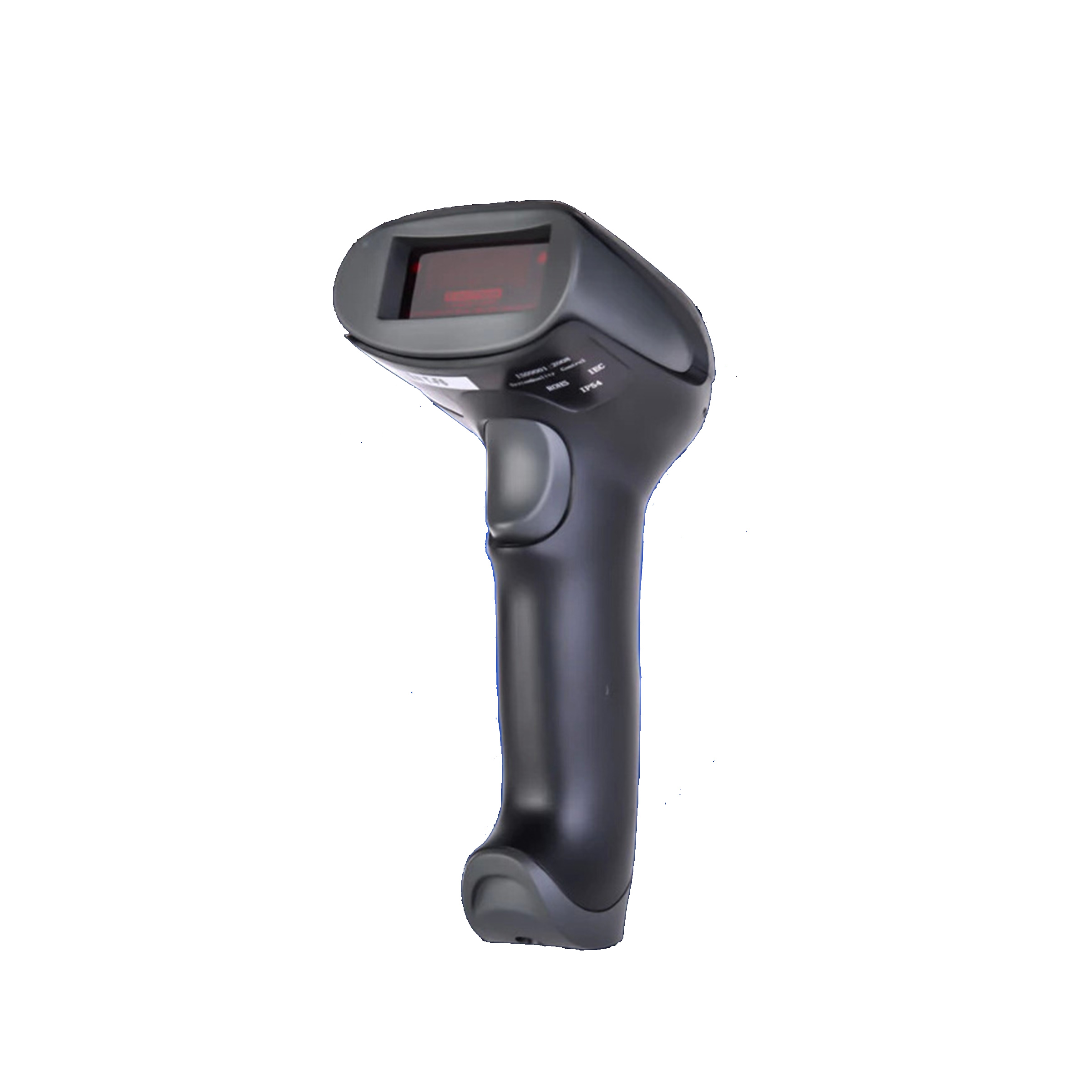

KARATINTL 1524 1D CCD Handhled Barcode Scanner
| Technical parameter | |
| Electrical Characteristics | |
| Interface | RS-232/ USB HID KEYBOARD |
| Voltage requirement | 5VDC±10% |
| Current consumption | 138mA Max |
| Optical Characteristics | |
| light source | 650nm red LED |
| Performance Characteristics | |
| Photo sensor | CCD linear sens |
| Sensor Resolution | 2500pix |
| Scan Rate: | 350±50 (scans/second) |
| Operating mode | single read / multiple read /Continuous read |
| Decode angle | Pitch angle：±30° Skew angle：：±75° Tilt angle：±45° |
| Min resolution | SR：0.115mm/4.5mil（PCS 0.9） |
| Min.PCS value | 〉20%UPC/EAN 13（13mil） |
| curvature | R≥15 mm (EAN8)，R≥20 mm (EAN13) (resolution=0.26mm，PCS=0.9） |
| bit error rate | 1／500W |
| Identification | EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，，CODE 128， EAN/UCC 128，CODE 11，CHINESE POST |
| Physical Characteristics | |
| Dimensions | 70mm*95mm*168mm(L*W*H) |
| Weight | 172.3g |
| Configurations | Decoding |
| Environmental Characteristics | |
| Temp | -20°- 60°C ( -4°F - 140°F )(operation) ， -40°- 85°C (-40°F -185° F)storage) |
| Humidity | 5 - 90% (operation) ) 5 - 90% (storage) |
| Ambient Light: | fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
| Shock drop test | 15m drop onto concrete surface |
| Regulatory | |
| Electrical Safety | UL 60950，EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
| Environmental | RoHS |
